Flow Rate Valve

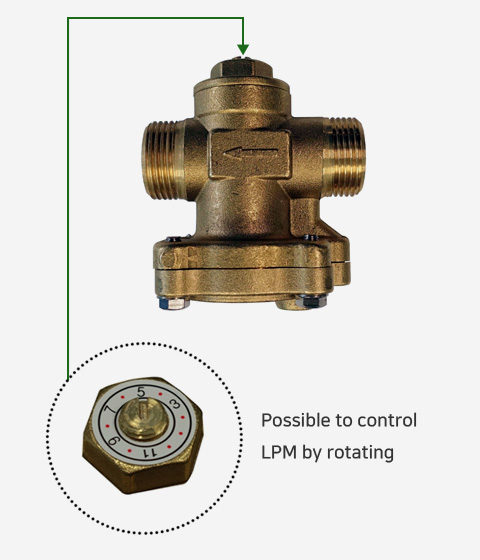

Changeable flow rate valve_15, 20A | 20,25A
Characteristic
By combining two functions of flow rate valve and strainer, usability and maintenance are easy and each function is maintained as it is.
- Brass simple body
- Maximum Work Pressure: 25kg/㎠
- Stainless Cartridge
- Stainless Spring
- Diaphragm
- Maintain the flow rate within ±5%.
Range of pressure control
- 0.2~2kg/㎠
Applied flow rate(LPM)
- possible to control 3~11 LPM

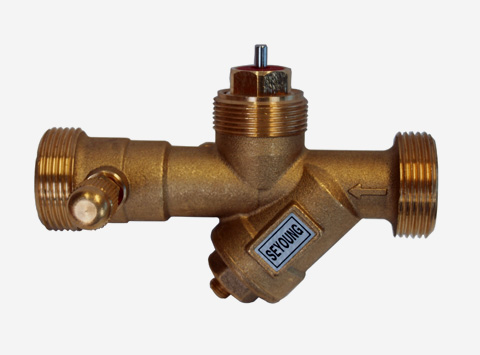

Complex-type flow rate valve_15, 20A | 25A
Characteristic
By combining three functions of temperature controlling valve, flow rate valve, and strainer, usability and maintenance are easy and each function is maintained as it is.
- Brass simple body
- Front and rear pressure management
- Stainless Cartridge
- Stainless Strainer
- Maintain the flow rate within ±5%.
Range of pressure control
- 0.2~2kg/㎠
Applied flow rate(LPM)
| 15A | 3.8 | 4.7 | 5.7 | 6.6 | 7.6 | 8.5 | 9.5 | 10.4 |
|---|---|---|---|---|---|---|---|---|
| 20A | ||||||||
| 25A |

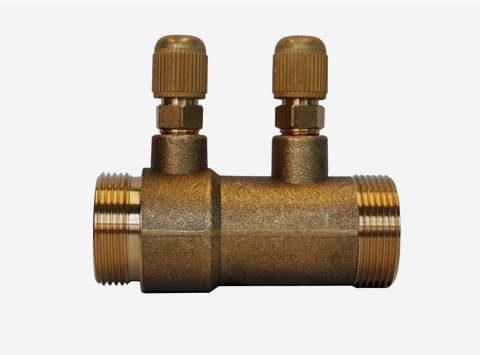

Flow rate valve_15A | 20A | 25A
Characteristic
- Front and rear pressure measurement
- Strainer X
- Brass simple body
- Maximum Work Pressure : 25kg/㎠
- Stainless Cartridge
- Maintain the flow rate within ±5%
Range of pressure control
- 0.14~2.24kg/㎠
Applied flow rate(LPM)
| 15A | 3.8 | 4.7 | 5.7 | 6.6 | 7.6 | 8.5 | 9.5 |
|---|---|---|---|---|---|---|---|
| 20A | |||||||
| 25A |
